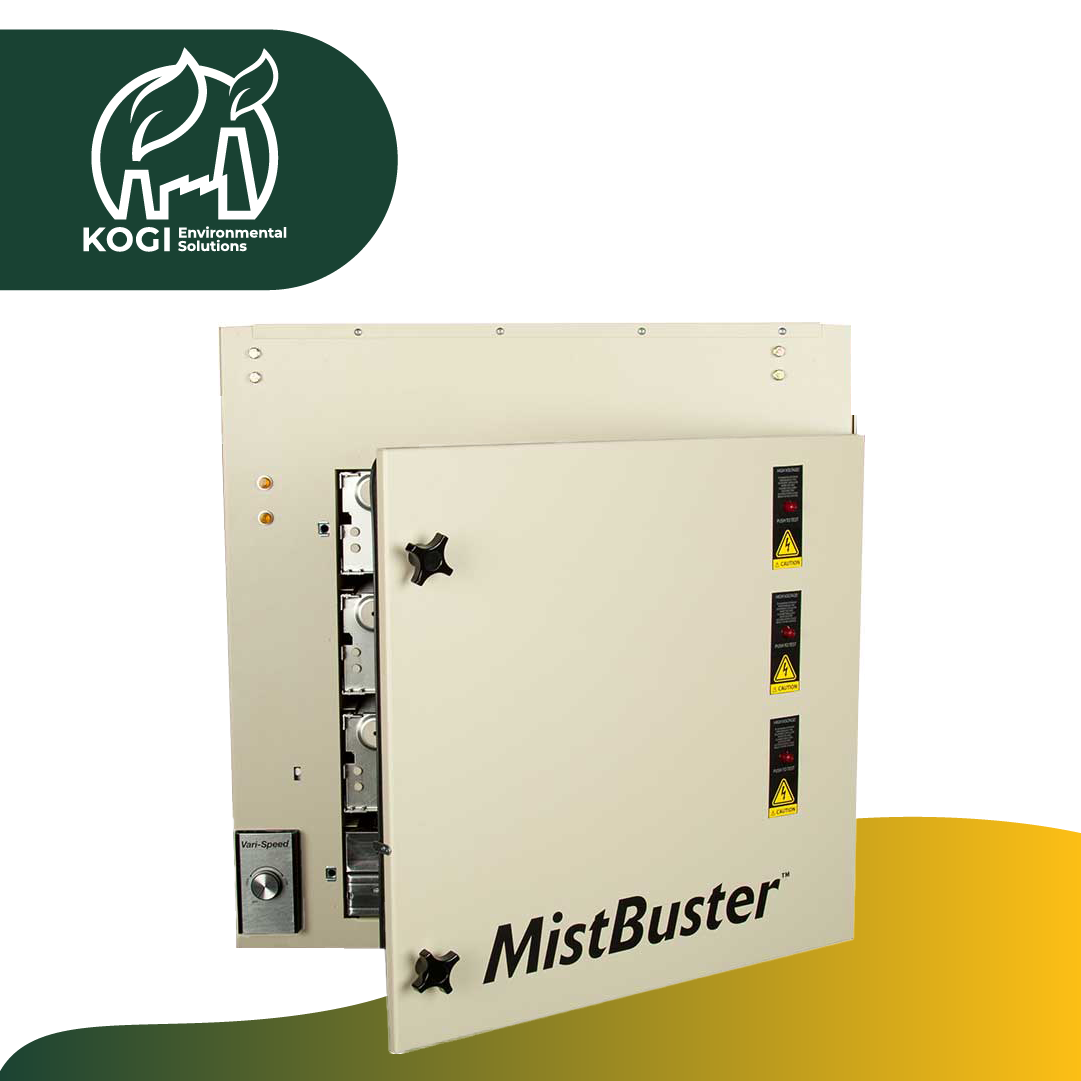

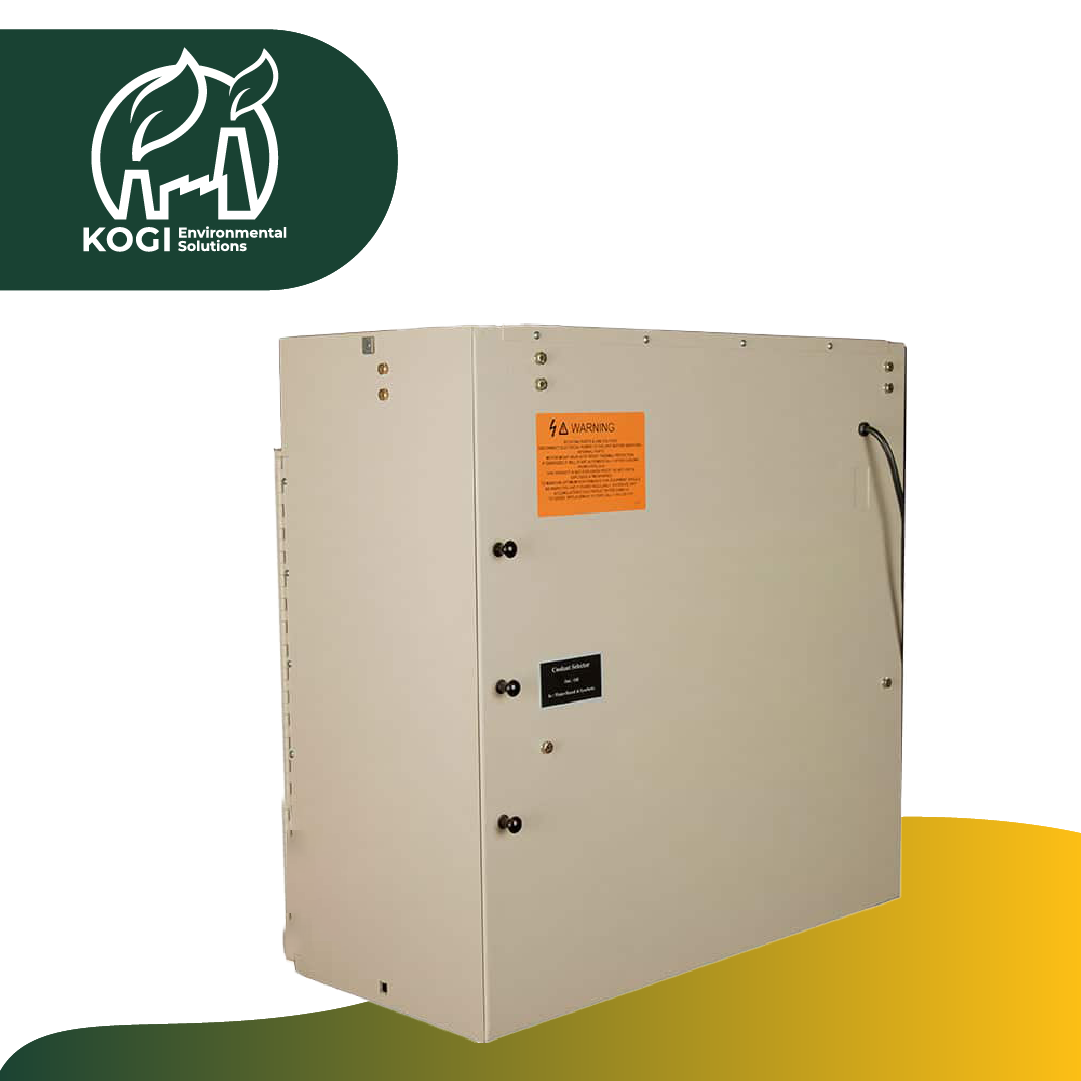

MistBuster® 850 Air Cleaner

MistBuster 850 Air Cleaner

The MistBuster 850 Air Cleaner is a next-generation electrostatic mist collector engineered for high-efficiency air filtration in CNC and industrial machining environments. Designed to capture mist, smoke, and fine metal particles at the source, this compact unit supports coolant pressures up to 1,500 PSI and adapts seamlessly to both oil-based and water-soluble coolants via a patented variable voltage selector.

High-Efficiency Filtration Performance

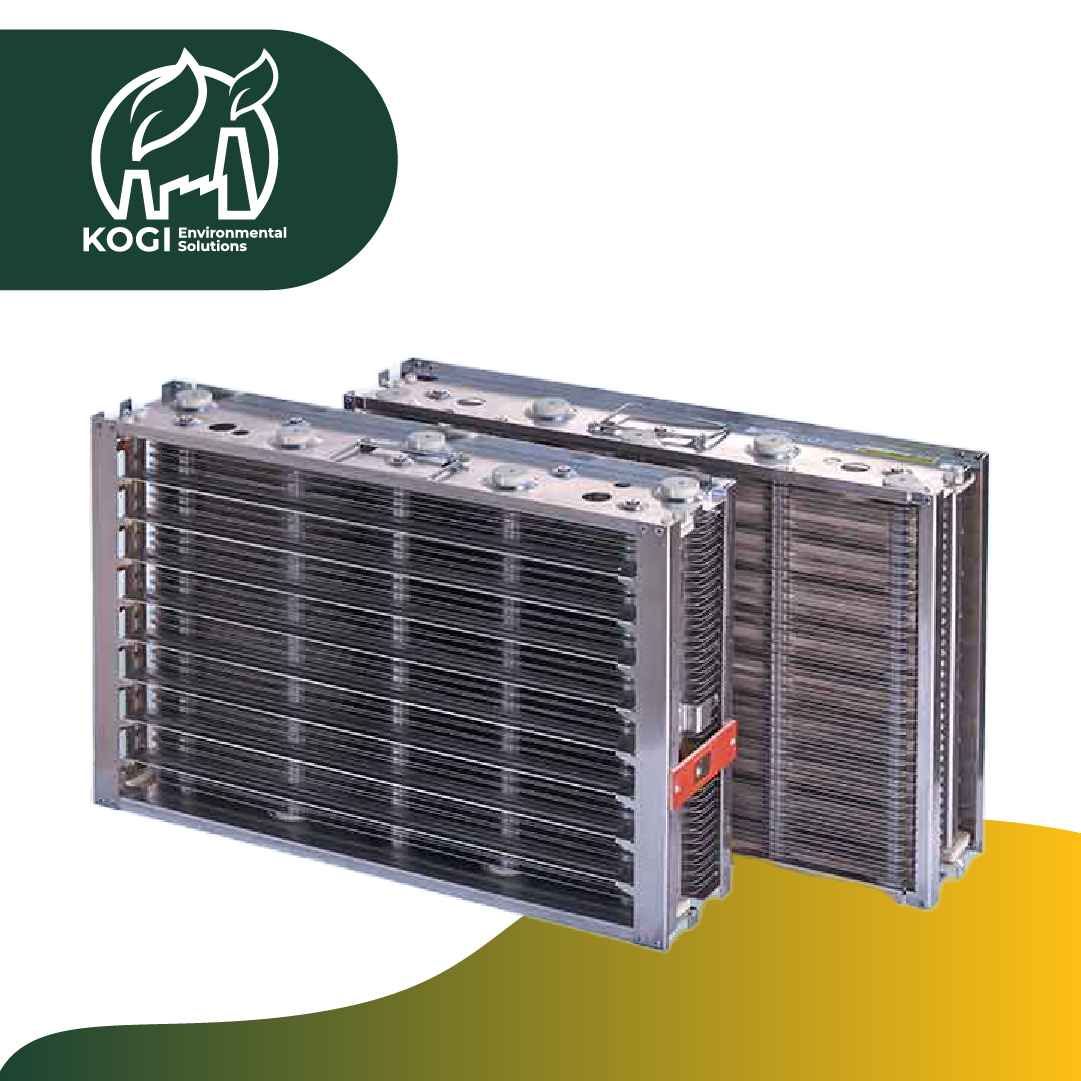

Equipped with a five-stage filtration system, the MistBuster® 850 features Air Quality Engineering’s proprietary Advantage™ electronic collector cells, delivering up to 99.4% efficiency on submicron particles. An optional HEPA post-filter enhances performance up to 99.97% efficiency, meeting stringent indoor air quality standards for clean, safe work environments.

Key Benefits

• Powerful airflow: Variable control up to 850 CFM

• Energy efficient: Uses as little as 1.08 amps under full load

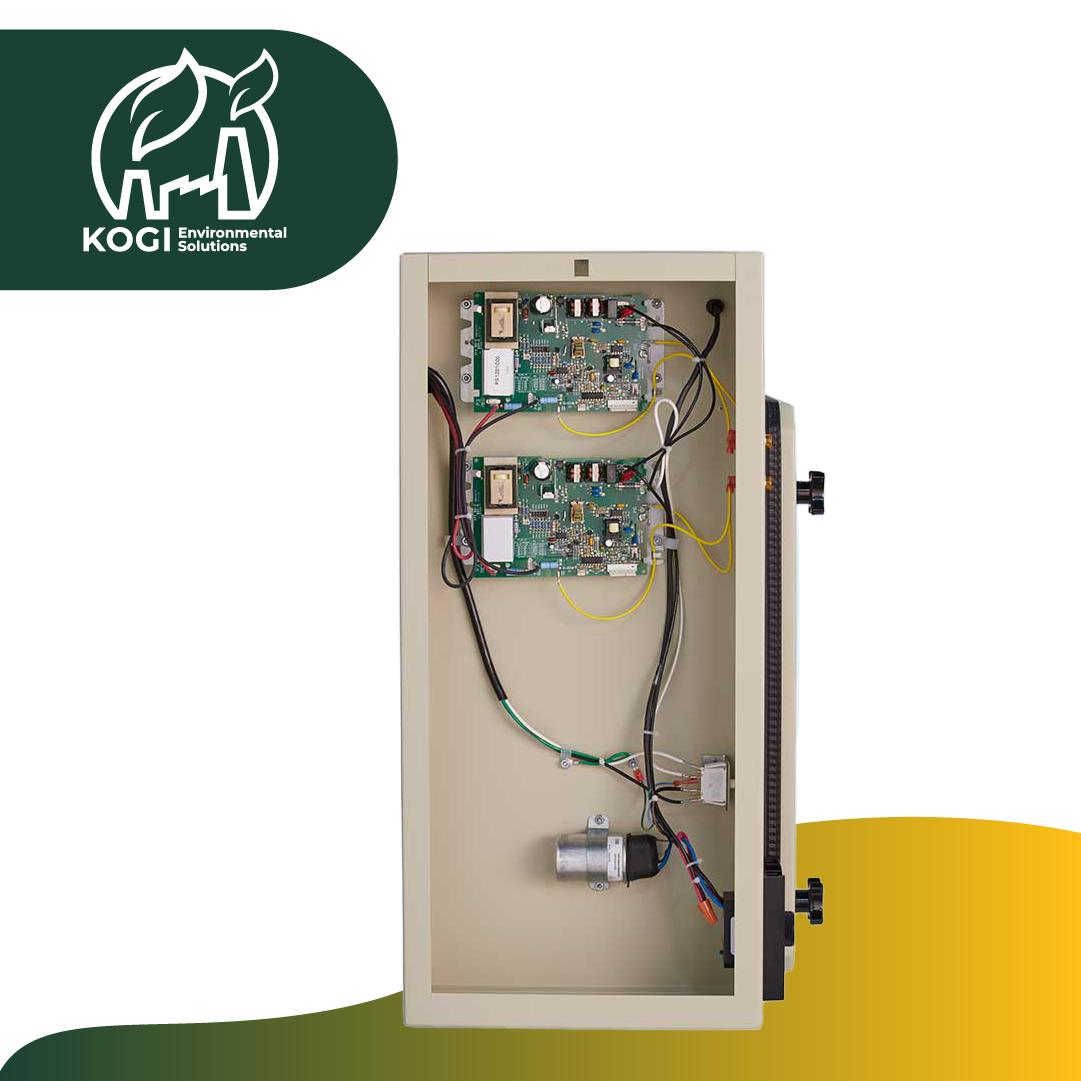

• Reliable design: Sealed electronics and self-cleaning features reduce maintenance

• Flexible mounting: Machine mount, ceiling, wall, or pedestal stand options

• Extended service intervals: Next-gen technology reduces cell washing from monthly to yearly in some cases

Built for Demanding Environments

The MistBuster® 850 is constructed from 16-gauge steel with a chemical-resistant powder-coated finish. With a compact footprint and low power draw, it’s ideal for shops seeking energy savings without sacrificing performance. Its modular design and variety of accessories, including plenum diffusers, HEPA modules, and carbon filters, make it suitable for single or multi-machine installations.

Trusted Mist Collection Technology

Engineered and manufactured in the USA, MistBuster® sets the standard for industrial mist and smoke collectors. The MistBuster® 850 combines high performance, durability, and easy integration to support your facility’s air quality goals.

MistBuster® 850 – Technical Specifications

FeatureDetailsModelMB850AirflowVariable up to 850 CFMPrimary FiltrationElectrostaticCabinet16-gauge steel, powder-coated, chemical-resistant (Ivory or Gray finish)Power Input115V / 60Hz / 1ph / 4.3A
240V / 60Hz / 1ph / 2.15A

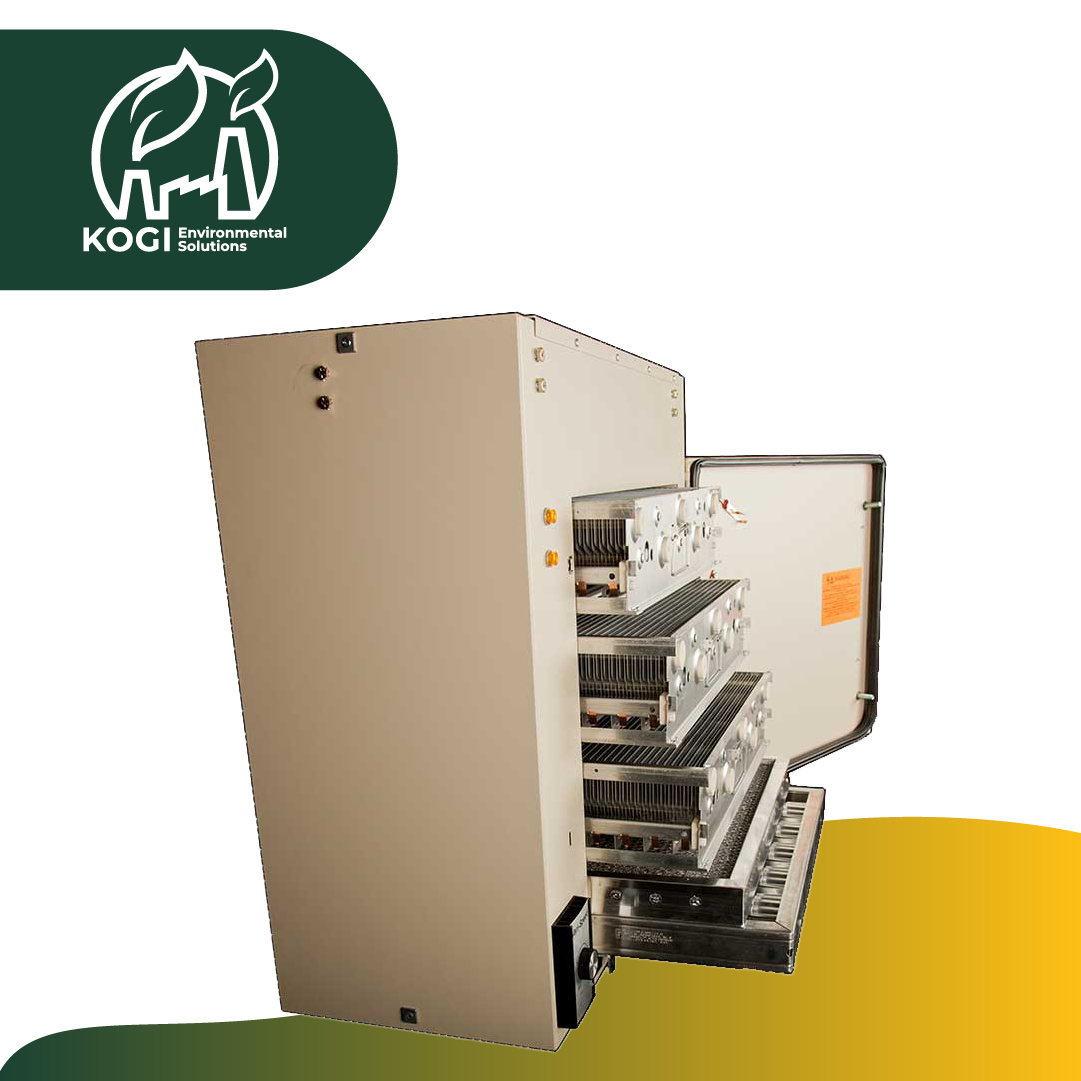

460V / 60Hz / 1ph / 1.08A (2 legs of 3-phase)EfficiencyUp to 99.4% (submicron particles per ASHRAE 52.2 at 750 CFM)Filtration Stages1. 4" Aluminum Mesh Impinge
2. AQE Advantage™ Electronic Cell
3. High-Efficiency MistBuster® Cell
4. Optional 2nd MistBuster® Cell
5. Optional HEPA (99.97%), ESF, or Carbon FilterMotor/ImpellerErP-compliant, backward-curved, vibration-free, direct drive, 850 CFM @ 1.1" w.g.Power Cord10 ft with molded plugEase of AccessQuick-release fasteners for tool-free accessLeak ProtectionEnhanced door-to-seal contact, latch spacers to prevent gasket compressionDimensions (L x W x H)27.10″ x 14.00″ x 27.47″Inlet Opening16.62″ x 9.08″WeightInstalled: 99–113 lbs
Shipping: 111–125 lbs (depending on cell count)AccessoriesMounting kits (machine, wall, ceiling, pedestal)
HEPA, ESF, Carbon Modules
Plenum, Diffuser
